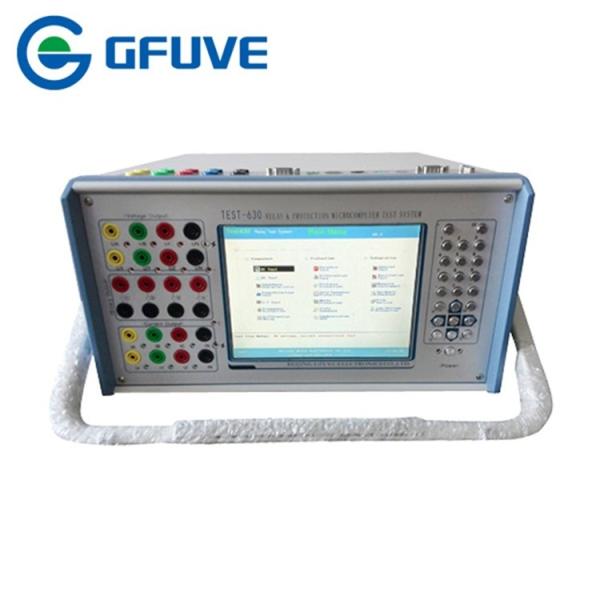

Portable Multi - Phase Electrical Protection Relay Testing Kit For Differential Protection Device

Name: Portable Multi Phase Electrical Protection Relay Testing Kit For Differential Protection Device
Brand: GFUVE
Price: 25000 USD

Quality Portable Multi - Phase Electrical Protection Relay Testing Kit For Differential Protection Device for sale

Brand Name : GFUVE

Model Number : TEST-630-180A

Certification : KEMA, Gost, CE, ISO9001, UL, CNAS

Place of Origin : BEIJING CHINA

MOQ : 1SETs

Price : 25000-32000USD/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SET/MONTH

Delivery Time : 1-2 weeks

Packaging Details : Standard Export Wooden Box

Name : Multi-Phase protective relay tester

Application : Differential Protection device

Function : Protection & relay test

LCD : 8.4 inch TFT color LCD

Class : <0.1

Frequency : 0-1050Hz

U : 0-300V DC, 0-260V AC

I : 0-180A AC, -10~10A DC

Weight : 19.8kg

Binary : 8 input, 4 output

Contact Now

TEST-630 Portable Multi-Phase Protection Relay Tester for Differential Protection device

The GFUVE TEST-630 is a versatile protective relay tester for testing relays and schemes.
This power system simulator performs the simplest through the most complex tests. Meeting all your protective relay testing needs, the TEST-630 is available in different configurations.
Whether you need to test a specific component or test an entire scheme, the TEST-630 is the proven solution to assess protection system performance.

Its unique accuracy and reliability make the Test-630 ideal for protection and measurement equipment manufacturers for research and development, production and electric power company type testing.

The TEST-630 Portable Multi-Phase Protection Relay Tester is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solid state and microprocessor-based protective relays, motor overload relays, and similar protective devices.

The unit can be operated either manually via the built-in Keyword, or placed under full computer control via the GFUVE, Advanced Visual Testing Software, or the GFUVE-software running on a PC. In addition, with the open communication architecture, the unit can also be used with third-party software programs such as National Instruments LabVIEW™.

FEATURES

Performs standard relay calibration and verification testing of high burden and microprocessor relays
Analog testing of 1A and 5A protection devices
Performs state simulation and transient testing
Tests 0.2-class metering CTs and transducers
Implements end-to-end testing of communications-based schemes with GPS time syncing
Maximum of 12 sources (six voltage, six current) configurable for bench testing and proof-of-concept testing for complicated relaying schemes
Delivers full VA power with resistive, inductive and capacitive loads at maximum current rating (6×30, 3×60, 1×180 amps)
Control all sources from a tablet device for basic, manual protection testing
Select from a number of protective relay tester models that feature varying power levels and complexity. Choose the best solution according to your testing and budgetary requirements.
Rugged construction and proven state-of-the art design provide laboratory accuracy with uncompromising field performance
Convenient front-panel display indicates active voltage/current amplitudes and phase values during testing
High-precision measurements for energy meter and transducer testing

OVERVIEW

6 phase current output
6 phase voltage output
8 binary input, 4 binary output
Accuracy more than 0.1%

TEST ITEM

U/I test
DC test
Impedance characteristics
Power direction test
I-T test
Differential relay
Harmonic test
Differential protection
Distance protection
Zero sequence protection
Setting group test
State sequence
Synchronization test
Special test
Oscillation test
Metering instrument
Hardware checkout
Low Voltage protection
Fault Waveform Reproduction

PARAMETERS

Electrical parameters
Power voltage	AC220V±10% or AC110V±10%, 50/60Hz±10%
Time measurement	0.1ms-999999.999s
AC current output
Phase current output (effective value)	6 x 0-30A
Maximum power output	260VA/phase
Maximum parallel current output (effective value)	0-180A
Long-term allowable working value of phase current (effective value)	>10A
Allowable working time of maximum current	>11s
Accuracy class	<±0.1%
AC voltage output
Phase voltage output (effective value)	6 x 0-130V
Line voltage output (effective value)	0-260V
Maximum power output	70VA/phase
Accuracy class	<±0.1%
DC current output
Output range	-10 to 10A or 6 x 0 to ±10A
Maximum power output	200VA
Accuracy class	<±0.1%
DC voltage output
Output range	0-300V or 6 x 0 to ±130V
Maximum output power	130VA
Accuracy class	<±0.1%
Binary input
Idle contact	1-20mA, 24V (DC)
Electric potential contact	250V/0.5A (DC)
Binary output
Idle contact	250V/0.5A (DC)
Rated output
Frequency error	<±0.01Hz
Phase error	<±0.1%
Waveform distortion	<±0.3% (fundamental wave)
Time error	<40µs
Output frequency	0-1050Hz
Superposed harmonic wave	0-21times
Mechanical parameters
Dimensions (L×W×H) (mm)	360x195x375
Weight (kg)	19.6
Environmental conditions
Use range	0°C to 45°C
Storage range	-25°C to 70°C

Phase angle
Range	0° to 360° or -180° to 180°
Accuracy	0.1°

Resolution

0.01°
